Class 150~600 Floating Ball Valve
Class 150~600 Floating Ball Valve
Product Description

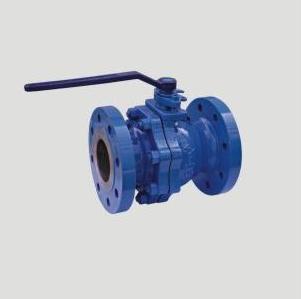

CLASS 150~600 Floating ball valve

Class 150~600
Design and Manufacture: API 6D, API 608 or BS5351
Face to Face Dimensions: ANSI B16.10
End Flange Dimensions: ANSI B16.5
Test: API 6D or API 598

Type of Connection:
RF and RTJ flange ends to ANSI B16.5 standard.
BW flange ends to ANSI B16.25 standard.

Type of Operation
Lever
Connection dimensions of Worm Gear actuator, Electric actuator, Pneumatic actuator to ISO 5211 standard.
Anti-static electricity constructions "AS" and Fire-safe constructions "FD"





Standard Material Specifications

NO.

Part Name

Carbon Steel to ASTM

Stainless Steel to ASTM

WCB

LCB

CF8

CF8M

CF3

CF3M

1

Body

A216 WCB

A352 LCB

A351 CF8

A351 CF8M

A351 CF3

A351 CF3M

2

Bonnet Nut

A194 2H

A194 4

A194 8

3

Bonnet Bolt

A193 B7

A320 L7

A193 B8

4

Cap

A216 WCB

A352 LCB

A351 CF8

A351 CF8M

A351 CF3

A351 CF3M

5

Gasket

SS Spiral Wound/Graphite or SS Spiral Wound/PTFE

6

Ball

A105/Ep.Cr or F6

A182 F6

A351 CF8

A351 CF8M

A351 CF3

A351 CF3M

7

Seat Ring

RPTFE or POM

8

Small Spring

Stainless Steel

9

Small Ball

A182 F304, A182 F316L

10

Stem

A182 F6

A182 F6

A182 F304

A182 F316

A182 F304L

A182 F316L

11

Stem Seat

PTFE

12

Stem Packing

Graphite or PTFE

13

Gland

A182 F6

A182 F304

A182 F316

A182 F304L

A182 F316L

14

Gland Bolt

A193 B7

A193 B8

15

Gland Flange

A216 WCB

A351 CF8

16

Positionling Plate

Steel

17

Wrench

A216 WCB

This material is according to ASTM standard.



Dimensions (mm) And Weights (kg)

Class

DN

mm

15

20

25

40

50

65

80

100

150

200

250

NPS

in

1/2

3/4

1

1-1/2

2

2-1/2

3

4

6

8

10

150

L(RF)

mm

108

117

127

165

178

191

203

229

394

457

533

in

4.25

4.6

5

6.5

7

7.5

8

9

15.5

18

21

L1(BW)

mm

140

152

165

190

216

241

283

305

457

521

559

in

5.5

6

6.5

7.48

8.5

9.5

11.13

12

18

20.5

22

L2(RTJ)

mm

119

129.7

139.7

178

191

203

216

241

406

470

546

in

4.69

5.11

5.5

6.9

7.5

8

8.5

9.5

16

18.5

21.5

H

mm

59

63

75

95

153

165

195

213

272

342

495

in

2.3

2.5

2.95

3.74

6.02

6.5

7.68

8.39

10.7

13.5

19.5

Do(W)

mm

130

130

160

230

400

400

600

850

1100

1500

350*

in

5.1

5.1

6.3

9

15.74

15.74

23.62

33.46

43.3

59

13.8

WT(Kg)

RF

2.3

3

4.5

7

15

20

25

40

97

160

240

BW

2.0

2.5

3.8

5.8

12

17

21

36

92.8

154

227


Class

DN

mm

15

20

25

40

50

65

80

100

150

200

NPS

in

1/2

3/4

1

1-1/2

2

2-1/2

3

4

6

8

300

L(RF)

mm

140

152

165

190

216

241

283

305

403

502

in

5.5

5.98

6.5

7.48

8.5

9.5

11.13

12

15.88

19.75

L1(BW)

mm

140

152

165

190

216

241

283

305

457

521

in

5.5

5.98

6.5

7.48

8.5

9.5

11.13

12

18

20.5

L2(RTJ)

mm

151

164.7

177.7

202.7

232

257

298

321

419

518

in

5.95

6.48

7

8

9.13

10.13

11.75

12.63

16.5

20.38

H

mm

59

63

75

107

153

165

195

213

272

342

in

2.3

2.5

2.95

4.2

6.02

6.5

7.68

8.39

10.7

13.5

Do(W)

mm

130

130

160

230

400

400

600

850

1100

1500

in

5.1

5.1

6.3

9

15.74

15.74

23.62

33.46

43.3

59

WT(Kg)

RF

2.5

3.5

5.5

10.5

20

25

31

52

118

200

BW

2.1

3

4.8

8.7

17

22

28

48

105

185


Class

DN

mm

15

20

25

40

50

65

80

NPS

in

1/2

3/4

1

1-1/2

2

2-1/2

3

600

L(RF)

mm

165

190

216

241

292

330

356

in

6.5

7.48

8.5

9.5

11.5

13

14

L1(BW)

mm

165

190

216

241

292

330

356

in

6.5

7.48

8.5

9.5

11.5

13

14

L2(RTJ)

mm

163.4

190

216

241

295

333

359

in

6.43

7.48

8.5

9.5

11.63

13.13

14.13

H

mm

59

63

75

107

153

165

195

in

2.3

2.5

2.95

4.2

6.02

6.5

7.68

Do(W)

mm

130

160

160

230

600

850

1250

in

5.1

6.3

6.3

9

23.62

33.46

49.25

WT(Kg)

RF

7.5

10.5

14.5

18.5

38

56

66

BW

6

8.7

11

14.7

31

49

58

* Worn Gear or Electric actuator operated.
