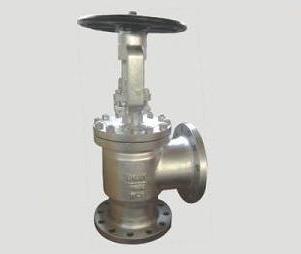

PN16~40 DIN Angle Globe Valve F32 Series
PN16~40 DIN Angle Globe Valve F32 Series
Product Description


PN16~40 DIN Angle globe valve F32 Series

PN16~40, DN200~300
Design and manufacture: DIN3356
Face to face: DIN3202-F32, EN558-1
End flange Dimensions: DIN2543(PN16), DIN2544(PN25), DIN2545(PN40), EN1092-1
Pressure test: DIN3230, EN12266-1
The size of serial, valve connecting flange can be design according to customers’ requirement.



Main Part Material

NO.

Name Parts

Material

NO.

Name Parts

Material

1

Body

GS-C25+13Cr

13

Split

Carbon Steel

2

Big Disc

A105+13Cr

14

Bonnet

GS-C25

3

Small Disc

A105+13Cr

15

Bearings

Alloy Steel

4

Small Disc Nut

A105

16

Stem Nut

A439 D2

5

Big Disc Nut

A105

17

Retaining Nut

1035

6

Stem

A182 F6a

18

Handwheel

A536

7

Gasket

Graphite

19

Nut

Carbon Steel

8

Nut

A194 2H

20

Nipple

Brass

9

Bolt

A193 B7

21

Pin

Carbon Steel

10

Packing

Graphite

22

Bolt

A193 B7

11

Gland

A182 F6a

23

Nut

A194 2H

12

Gland Flange

GS-C25








Dimensions(mm)

PN16        PN25       PN40

DN

200

250

300

L

275

325

375

H

730

780

880

W

PN16

450

500

600

PN25

450

500

600

PN40

500

550

650
