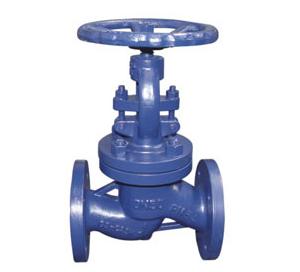

PN64 DIN globe valve F2 Series

PN64, DN15～150
Design and manufacture: DIN3356
Face to face: DIN3202-F2, EN558-1
End flange Dimensions: DIN2546, EN1092-1
Pressure test: DIN3230, EN12266-1
The size of serial, valve connecting flange can be design according to customers’ requirement.

Main Part Material

NO.	Name Parts	Material	NO.	Name Parts	Material
1	Body	GS-C25+13Cr	9	Packing	Graphite
2	Disc	A105+13Cr	10	Pin	Carbon Steel
3	Stem	A182 F6	11	Bolt	A193 B7
4	Disc Nut	A105	12	Gland	GS-C25
5	Bolt	A193 B7	13	Nut	A194 2H
6	Nut	A194 2H	14	Stem Nut	Bronze
7	Gasket	Graphite	15	Handwheel	A105
8	Bonnet	GS-C25	16	Nut	A194 2H

Dimensions(mm) and Weights (kg)

PN64
DN	15	20	25	32	40	50	65	80	100	125	150
L	210	230	230	260	260	300	340	380	430	500	550
H	210	230	250	275	300	325	385	410	455	510	560
W	120	120	140	160	180	200	220	250	300	350	400
Weight(kg)	8	10	12	16	17	26	33	42	60	85	110
