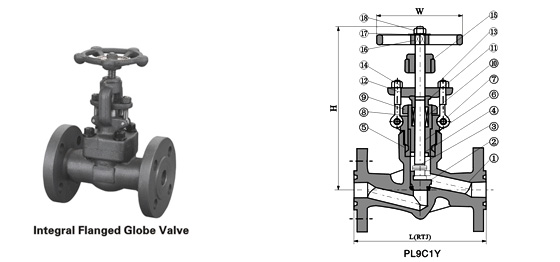

Class 900~2500 Flanged End Pressure-Seal globe valve
Standard Material Specifications
| NO. | Part Name | CS to ASTM | AS to ASTM | SS to ASTM | |
| Type A105 | Type A182 F22 | Type F34(L) | Type F316(L) | ||
| 1 | Body | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 2 | Disc | A276 420 | A276 304 | A276 304(L) | A276 316(L) |
| 3 | Stem | A182 F6 | A182 f304 | A182 F304(L) | A182 F316(L) |
| 4 | Pressure Seat | A105 | A182 F304 | A182 F304(L) | A182 F316(L) |
| 5 | Pressure Ring | A182 F304(L) | F316L | ||
| 6 | Bonnet | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 7 | Pin | A276 420 | A276 304 | ||
| 8 | P.S. Washer | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 9 | P.S. Lock Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 10 | Stem Packing | Flexible Graphite | PTFE | ||
| 11 | Gland | A276 420 | A182 F304 | ||
| 12 | Gland Flange | A216 WCB | A351 CF8 | ||
| 13 | Gland Eyebolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 14 | Gland Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 15 | Yoke Nut | A276 410 | |||
| 16 | Hand wheel | A197 | |||
| 17 | Nameplate | SS | |||
| 18 | H.W. Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| Suitable Medium | W.O.G. etc | W.O.G. etc | HNO3,CH3OOH etc | ||
| Suitable Temperature | -29℃~425℃ | -29℃~550℃ | -29℃~180℃ | ||
Note: Other materials are available upon request.
Dimensions(mm) And Weights(kg)
| NPS (in) | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
| L(RTJ) | 900Lb~1500Lb | 216 | 229 | 254 | 279 | 305 | 368 |
| 2500Lb | 264 | 273 | 308 | 349 | 384 | 451 | |
| H(OPEN) | 900Lb~1500Lb | 318 | 318 | 318 | 398 | 408 | 524 |
| 2500Lb | 333 | 333 | 333 | 410 | 420 | 524 | |
| W | 160 | 160 | 180 | 200 | 250 | 280 | |
| Weights | 900Lb~1500Lb | 15.5 | 16.9 | 18.9 | 28.9 | 34.3 | 52.8 |
| 2500Lb | 18.0 | 20.5 | 23.0 | 36.1 | 45.0 | 81.5 | |
